Re: From FreeCAD To The Real World

Post by quick61 »

Nice one. It's always great to see these sorts of things, folks using FreeCAD to help in the production of "real" stuff.

Mark
This post made with 0.0% Micro$oft products - GOT LINUX?
cox
Posts: 971
Joined: Wed Nov 26, 2014 11:37 pm

Re: From FreeCAD To The Real World

Post by cox »

Made for easy 3d Printing and modification for Heatermeter project.

Only adapt the parts you need to change. Different damper types can be made and incorporated later.

Gist repository on Github --------------------- Download zip


Need help? Feel free to ask, but please read the guidelines first
User avatar
quick61
Veteran
Posts: 3804
Joined: Sat Aug 24, 2013 2:49 am
Location: u.S.A.

Re: From FreeCAD To The Real World

Post by quick61 »

Nice project. I wonder how well that would work on something like one of Uncle Dave's, (Dave Gingery) charcoal foundries. Probably just need the right probe...

Mark
This post made with 0.0% Micro$oft products - GOT LINUX?
User avatar
rockn
Veteran
Posts: 1763
Joined: Wed Sep 28, 2011 10:39 am
Location: Toulouse, France
Contact:

Re: From FreeCAD To The Real World

Post by rockn »

Hi everyone,
My fisrt CNC project (test project) with the use of the newcoming Path workbench of FreeCAD.
The project inside FreeCAD
In the CNC
The final piece
It was just a test project for two reasons. I use the CNC of my local FabLab and I have to be coaching to become autonomous. There is still some bug in Path module and at the moment my final project is not exportable in gcode without reversed arc.
But I'm sure soon I will machining a nice project using FreeCAD ! :D
Formations et tutoriels FreeCAD en Français, soutenez moi : https://www.tipeee.com/formations-freecad
User avatar
quick61
Veteran
Posts: 3804
Joined: Sat Aug 24, 2013 2:49 am
Location: u.S.A.

Re: From FreeCAD To The Real World

Post by quick61 »

@ rockn - Nice. I haven't actually run any Gcode from FreeCAD on a machine yet, just in a simulator like OpenSCAM. Good to see it coming along.

***

Cat Tree

I had a recent project, that while the model was quite simple, it did go through 3 versions in FreeCAD before a final design was decided on, dimensioned plans and templates were printed out, and the project was built. Almost finished except for the trim around the openings, (haven't found the right stuff yet), but still more than good enough for the little KittyMonster. :P
And where would ANY FreeCAD project be it one did not include a few 3D printed parts? ;)
And the almost finished project with intended benefactor. 3D printed parts are the green objects holding the rope that is wrapped around the dowels and hanging down for play.
Mark
This post made with 0.0% Micro$oft products - GOT LINUX?
triplus
Veteran
Posts: 9475
Joined: Mon Dec 12, 2011 4:45 pm

Re: From FreeCAD To The Real World

Post by triplus »

Happy user.
elgambitero
Posts: 16
Joined: Thu Oct 29, 2015 10:57 am

Re: From FreeCAD To The Real World

Post by elgambitero »

Lost garage remote cover and button, remodelled in FreeCAD, 3D printed with a bq Hephestos:
I happily share the files in a random object git:

https://github.com/elgambitero/Househol ... B%20remote
triplus
Veteran
Posts: 9475
Joined: Mon Dec 12, 2011 4:45 pm

Re: From FreeCAD To The Real World

Post by triplus »

Looking good.
JMG
Posts: 279
Joined: Wed Dec 25, 2013 9:32 am
Location: Spain
Contact:

Re: From FreeCAD To The Real World

Post by JMG »

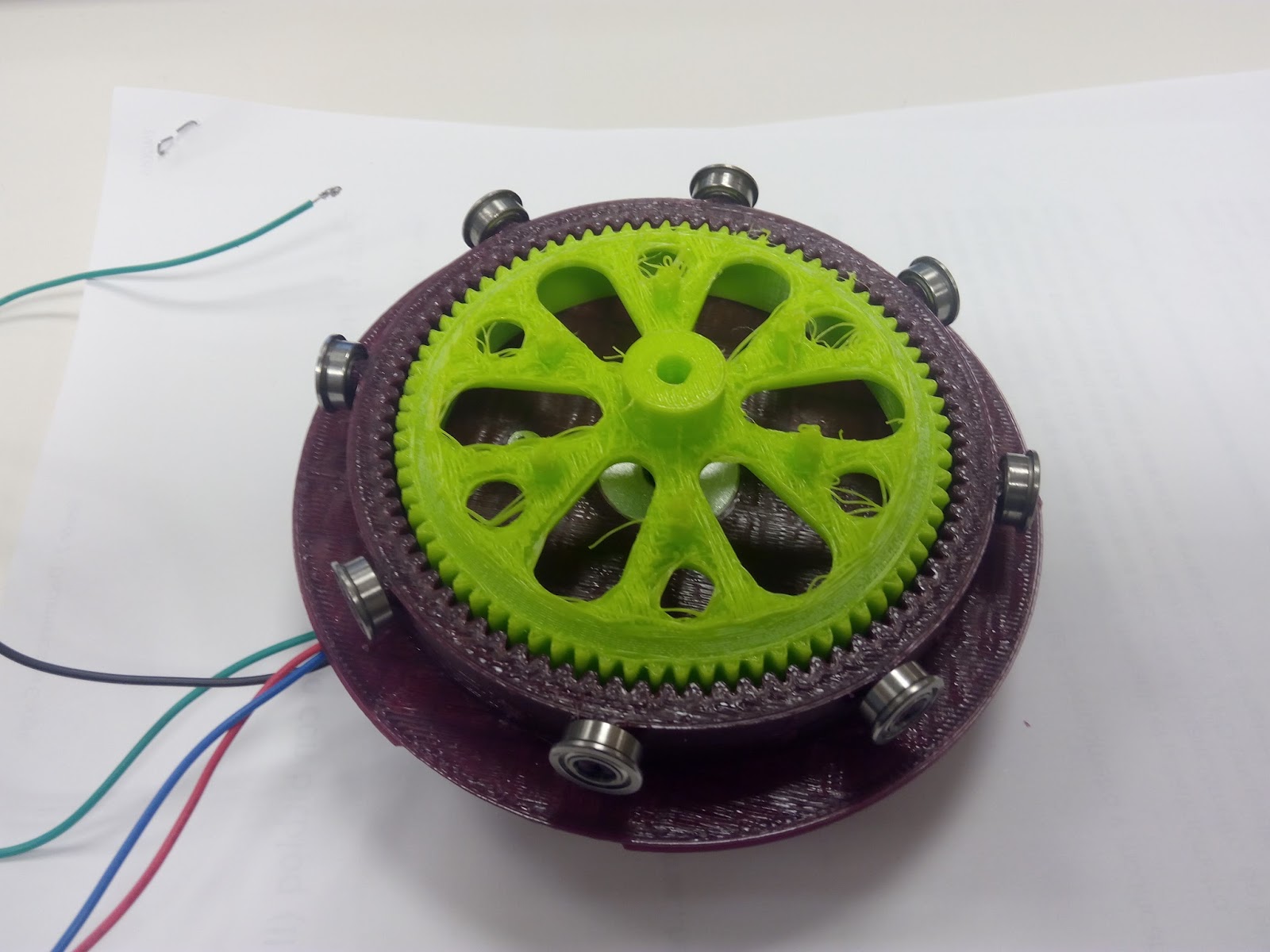

Harmonic drive (using pla and filaflex)

This mechanism is intended to replace the direct drive stepper that is currently rotating the plate of the ciclop scanner


FreeCAD:





Real-world:

Detail of the internal gear made with filaflex:

Real-world section is missing the internal oscillator, but I will post everything once it finishes printing :)


Javier.
FreeCAD scripts, animations, experiments and more: http://linuxforanengineer.blogspot.com.es/
Open source CNC hot wire cutter project (NiCr): https://github.com/JMG1/NiCr
Exploded Assembly Workbench: https://github.com/JMG1/ExplodedAssembly
User avatar
quick61
Veteran
Posts: 3804
Joined: Sat Aug 24, 2013 2:49 am
Location: u.S.A.

Re: From FreeCAD To The Real World

Post by quick61 »

Yes! Very nice and well done. :)

Now we're just waiting on the video that shows this in action. ;)

Mark
This post made with 0.0% Micro$oft products - GOT LINUX?
Post Reply
